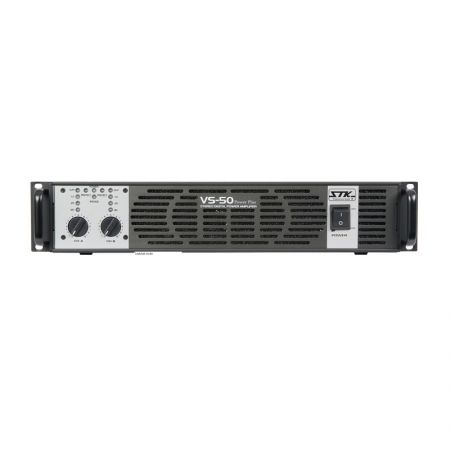

Tăng âm công suất 2x1600W VS-50 STK

Liên hệ

Mô tả
Thông số kỹ thuật
Tài liệu kỹ thuật

Mã sản phẩm: VS-50 STK

Nhóm sản phẩm: Tăng âm công suất

Hãng sản xuất: STK/Korea

Trạng thái: Sẵn hàng

####

Model	VS-50
Stereo Mode (both channel driven)	Continuous Average Output Per Channel
FTC @ THD+N=0.1%, f=20Hz~20kHz	Ch1		Ch2
8 ohm/Stereo	1400W		1400W
4 ohm/Stereo	2050W		2050W
2 ohm/Stereo	2450W		2450W
EIA @ THD+1=1%, f=1kHz
8 ohm/Stereo	1450W		1450W
4 ohm/Stereo	2150W		2150W
2 ohm/Stereo	2500W		2500W
Bridge Mono Mode(both channel driven)
8 ohm/Stereo	4000W
4 ohm/Stereo	5000W
Power Bandwidth (Ref. 1kHz, THD+N=0.1%,+0/-1dB)	20Hz~20kHz
THD+N (Ref. 1kHz,f=20Hz~20kHz)	≤0.05%
Frequency Response (Ref. 1kHz, 1watt output, +0/-1dB)	20Hz~30kHz
IMD(SMPTE4:1) (60Hz:7kHz, 4:1 Half power)
4-8 ohm/Stereo	≤0.1%
2 ohm/Parallel	≤0.1%
8 ohm/Bridge	≤0.1%
Crosstalk (RL=8Ω, Half power, Att.Max 600Ω shunt)	≥64dB, 1 kHz
Residual Noise (20Hz~22kHz LPF,Att.min)	≥70dB
S/N Ratio (Filter:A-Weighting, RMS)	≥107dB
Damping Factor (RL=8Ω, f=1kHz)	≥400
Input Sensitivity (Att. max)
4 ohm/Stereo	+0 or +4.0 or +7.0 dBu By Select Switch
8 ohm/Bridge	Up to +2.1 dBu from 4 Ω/Stereo Input
Voltage Gain(Att. max)	41.56dB
Output Circuitry	H Class 3-Step
Input Impedance	6kΩ(Unbalance), 12kΩ(Balance)
Controls
Front panel	AC Switch,Ch1 and Ch2 gain knobs
Rear panel	Low cut 30Hz Filter Output clip limiter, Sensitivity, ST/Mono Bridge, Parallel
Connectors
Input	Neutrick Female XLR jack
Output	XLR Male Jack(In put Through) Speakon Jack
Indicators	Protect(Red),Power (Green), Mono Bridge (yell), Parallel(Green),Peak Clip (Red), 3 step level meter (Green)
Protection Circuits		1)Short Circuits 2)Current Limit 3)DC detection 4)Thermal 5)Main Voltage Detect 6)Power supply shutdown 7)AC Line fuse
Fan Circuit	Four Fans Variable Low Speed(50℃), High speed(60℃)
Power Consumption (1/3 power)	3050Watts
DIMENSION	480mm X 110mm X 495mm
Shipipng Weight & volume	19.90kg / 0.0788cbm
