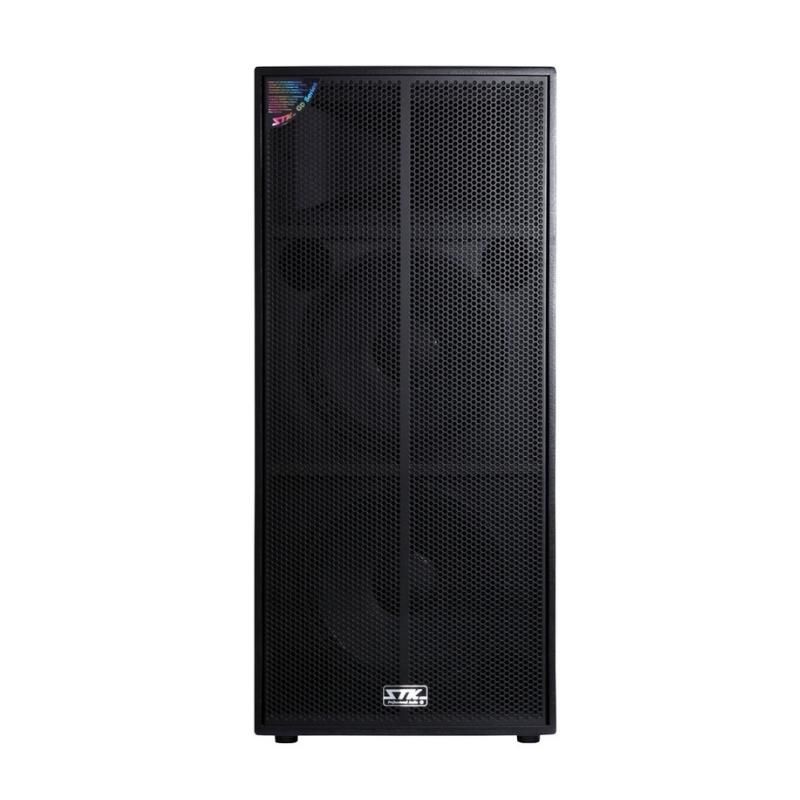

Loa Thùng 2400W SP-4733N STK

Model

SP-4733N

PHYSICAL SPECIFICATION

System configuration

2-Way Full Range

LF system & Loading

Dual SK 15600 15″ woofer, Vented

HF system & Loading

One 3″Voice coil compression on SABS 1 horn.

Operating Mode

Passive or BI-Amplified

Controls

Powering Mode select strip

Enclosure Material

Plywood,MDF

Enclosure Finish

Black warnex texture coated

Connectors

Two neutrick speakon

Grille

Powder coated perforated steel

Optional accessories

1. STK caster “SCP80″(80mm wheel)
2. STK caster “SCP100″(100mm wheel)

Demensions
( ±0.13 inch / ±3 mm)

Height: 1220
Front width: 550
Rear width: 397
Depth: 510

Trapezoid angle(degrees)

18

Shipping/CBM

0.496

Net weight

Shipping weight

78.65 kg

TECHNICAL SPECIFICATION

Frequency Response

±3 dB

50Hz ~ 18kHz

-10 dB

35Hz ~ 20kHz

Recommended High-Pass Frequency

30Hz

Axial Sensitivity(dB SPL, 1 watt @ 1m)

Full Range Passive 103

Nominal Input Impedance(ohms)

Full Range Passive: 4
LF: 4
HF: 16

Power Handling, Watts

(Continuous/Program/Peak)

Full Range Passive: 1200/2400/4800

(Continuous)

LF: 1200

(Continuous)

HF: 200

Max Calculated SPL (Referenced to 1 m)

Full Range Passive Peak

139

Full Range Long Term

133

Norminal disperson(degrees @ -6dB)

Horizontal

90

Vertical

50
