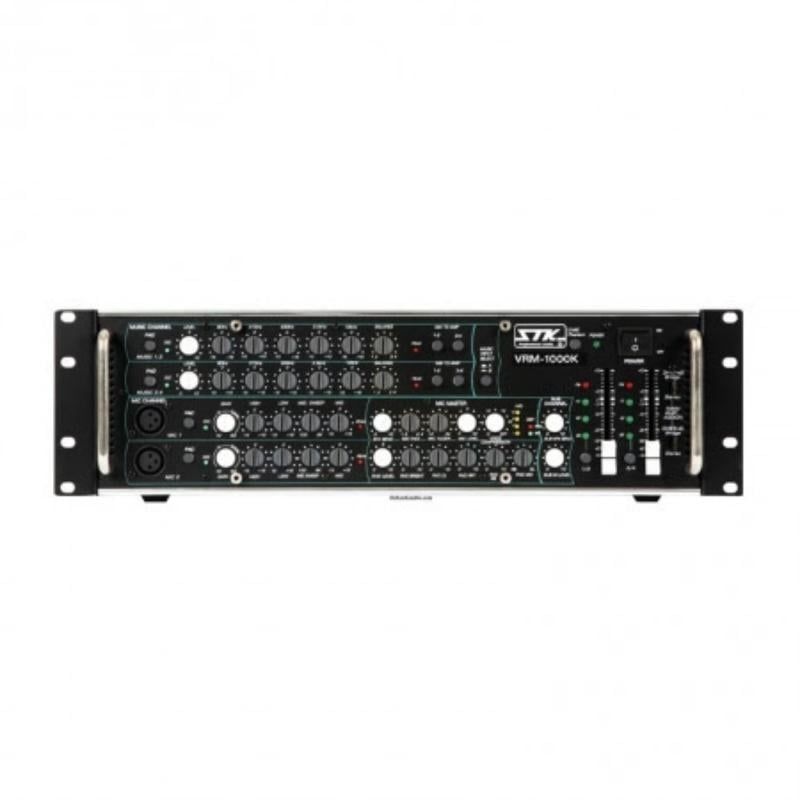

Amply mixer STK VRM-1000K

Model

VRM-1000K

Configuration

Power(EIA)

4 ohm Load Per Channel

250 Watts each Channel

8 ohm Load Per Channel

170 Watts each Channel

Bridged 8 ohm

470 Watts each channel

Rated Power(20-20kHz)

4 ohm Load

220W x 4CH

8 ohm Load

150W x 4CH

Bridged 8 ohm

430W x 2CH

Distortion
(THD & SMPTE IND:20Hz TO 20kHz)

Mic input to Main Mixers Output

0.01%

Mic input to Power Amp Output

0.05%

Inputs(all 1/4” TRS are Bal. / Unbal. except)

Mono Mic/XLR

2

Stereo Music line A/RCA

4 L & R

Stereo Music line A/RCA

4 L & R

CH Insert

–

Tape

–

AUX Returns/Sub CH in

2 TS 1/4″

Amp in/ 1/4″ TRS Phone Jack

4 Main Insert

Outputs
(all 1/4” TRS are Bal. / Unbal. except*)

Main L/R Stereo

4 GROUP TS 1/4”

Main Mono(Subwoofer)

Stereo RCA

Aux Sends

2 RCA for score high & low

Tape L/R Stereo

Stereo RCA

Phones

–

Speaker Outputs

4 Compression Terminals

Channel Strips

Level controls

Yes

Constant PAN(Blance) control

Yes

10dB Input PAD

Yes

Buss Assign

Yes(Mix to Amp 1-2/3-4)

Music Input Select

Yes(A-B)

Aux controls

1 EFX

EQ

Yes

LED indicators

Sig,Peak

Master Section

Digi EFX Program

Dual Variable
1 Rev Control(0.5-2 sec)
1 Dealy Control(50-500 msec)
1 Feed Back Control(0-70%)
1 Delay + Reverb Mixing Control(0-100%)

Digi EFX Control

DSP Level Set(Peak, Sig),Bright Control

Digi EFX Buss Control

Yes

Voice Compression control

Yes

Mic Master Level Control

Yes

Mic Master Fader Control

Yes

Mic Master Pan Control

Yes

Effect Send Mic Master

Yes

Output Metering Bar Graphic

Yes(1/3,2/4)

Main Mic Master Volume

60 mm Faders

Mono Master

Yes(by main mix fader)

Power AMP Assign

L(CH 1&2)+R(CH 3&4)Bridge/Stereo

Power AMP Clip Limiter SW

Yes, CH1&2 CH3&4

Noise

Master Gains@Unity, CH.gains Down

87dB

Master Gains@Unity, CH.gains@Unity

85dB

Signal to Noise Ratio

≥89dB

Crosstalk

Adjacent inputs or to output

-89dB

Frequency Response

20Hz to 40kHz(Mic Pre Section)

+0, -1.5dB

20Hz to 30kHz(Power AMP Section)

+0, -1.5dB

Maximum Levels

Mic Preamp Input

+14dBu

Power amp in

0dBu

All other inputs

+14dBu

Impedances

Mic Preamp Input

+4 Bal

All Other Inputs

10 k

Line Input

4 k

Equalization

3 Band Mid Sweep(MIC CH)

5 Band G.EQ(MUSIC CH)

Low EQ(±15dB)

80Hz±15dB

60Hz, 250Hz

Mid EQ(±12dB)

100Hz-8kHz±12dB

1 kHz, 3.5kHz

Hi EQ(±15dB)

12kHz±15dB

12kHz±12dB

Low-Cut Filter

150Hz 12dB/Oct for Mono output

Micriphone Preamp E.I.N

-130 dBm

Power Requirements

1300 Watts

Dimension(WxHxD)

483 x 132 x 357

Shipping/CBM

0.0593

Net Weight

15 kg
